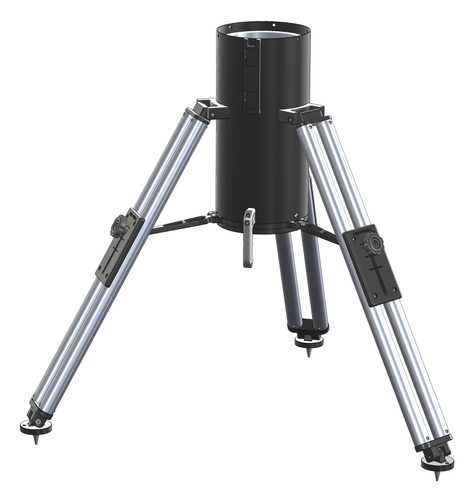

The Astro-Physics Tri-Pier: Professional Stability, Redefined.

Engineering Excellence Meets Field Portability

The newly reimagined Astro-Physics Tri-Pier is our new support system enhanced to add support for mid- and large-sized observatory-class mounts (including 1600GTO, 1200GTO, 1100GTO and 1150GTO). More than just a support system; it is a modern, high-capacity masterpiece designed for the serious astro-photographer. This one-piece, "go-anywhere" assembly combines the rock-solid stability of a permanent pier with the rapid deployment of a portable tripod. Whether you are chasing dark skies or perfecting your backyard observatory, the Tri-Pier delivers a sophisticated, tool-free experience that simplifies portability and setup.

Designed For

• 1600GTO and 1200GTO mounts, all versions

Unmatched Versatility & Field Flexibility

Setting up your dream rig should never be a chore. These features will enhance your observing and imaging sessions:

• Large, ergonomic hand knobs. Ensures your entire setup and adjustment process remains completely tool-free.
• Level on uneven ground. Need to compensate for rugged, uneven terrain? Simply loosen the three Leg Adjustment Knobs to articulate the feet and fine-tune the central column level. By adjusting the leg spread relative to the center, you can dial in the perfect height and achieve a level base even on sloped ground.
• Spikes, stakes or flat contact surface. Easily switch from hard flat to softer ground with the included stainless-steel machined spikes. Remove the spikes from their storage position at the base of the legs and thread them into the flat surface. For extra measure and security, insert stakes (you provide) through the hole at the base of the legs. Refer to the photos above.
• Secure pier post to the ground with optional eyebolt. Install 1/2" 13 eyebolt you provide to the base of the pier and lash it down. Refer to the photo above.
• Run cable through pier. Remove the grommet (shown in the photo above) and run your cables through the base of the pier post and up through the opening. Refer to photos above.
• Carrying handle. The built-in handle is out of the way, but available to aid your transport.
• Velcro strap. Keep the legs in place when you store or carry the tri-pier.
• Additional height with 6” Extension (TRIPIER10-E6).The optional extension is useful for increased height when observing with longer refractors or targets at higher altitudes. When the extension is not used, store it on the bottom of the column, saving space and bulk. Plus you won't forget it when you pack your car to head to your favorite dark-sky site.

Technical Specifications

Internal Diameter - Top of the Pier Post: 9.812" (24.9cm) I.D.
Standard Height Range: 42" (106.7cm) (Minimum) to 45" (114.3cm) [Maximum at 36" (91.4cm) footprint].
Extended Height Range: Up to 51" (130.5cm) [with optional 6" (15.2cm) Extension and 36" (91.4cm) footprint].
Uneven Ground Adjustment Range: 3" (7.6cm) over a 36" (91.4cm) distance (approx. 4° slope) while maintaining a stable 18" (45.7cm) footprint radius.
Maximum Stability Footprint: 48" (121.9cm) diameter circle.
Minimum Recommended Footprint: 36" (91.4cm) diameter circle.
Transport Dimensions:8" (20.3cm) is 12" (30.5cm) diameter x 47.5" (120.7cm) length (folded). 10" (25.4cm) is 19.5" (49.5cm) diameter x 47.5" (120.7cm) length (folded).
Weight:8": 37 lb. (16.8 kg). 10": 42lb (19kg)
Optional 6" Pier Extension Weight: 8": 3.5lb (1.6kg), 10": 4lb (1.8kg)
Bottom Center-Bolt Tap 1/2" 13 for eye bolt (Eye bolt not included; can be sourced from any hardware store)

What's Included

• 10" Tri-Pier
• Stainless steel machined spike in storage position on each leg
• Two holes with grommets for cable channeling
• Velcro strap

Build Your Dream Setup

Customize your Tri-Pier to fit your specific workflow with our dedicated accessories:

• Optional 6" Pier Extension (TRIPIER10-E6): Push your vertical limit for long-tube OTA's or a tailored observing height.
• Support Bars (TRAYSB1 & TRAYSB): Available in Single or Bi-Level configurations for maximum utility.
• Accessory Trays (TRAY10 & TRAY10H): Keep your 8" trays and eyepieces organized and within reach.
• Control Box Adapter (CBAPT): Securely mount your GTOCP2, GTOCP3, or GTOCP4 Control Box directly to the pier column for clean cable management.

Availability

August 31, 2026 Update

Production of the 8" Tri-Pier now underway. We estimate the 10" version will be available in early 2027. Please complete the 10"Tri-Pier Notification Request Form if you would like to be notified that you can order.
