Nikon DSLR Camera Adapter with large 1.592" (40.4mm) diameter stainless steel bayonet. For all 3.5" and most 4" Field Flatteners and TCC Telecompressor Correctors (ADATCCNIK)
Brand : Astro-Physics
- SKU:
- ADATCCNIK
- Availability:

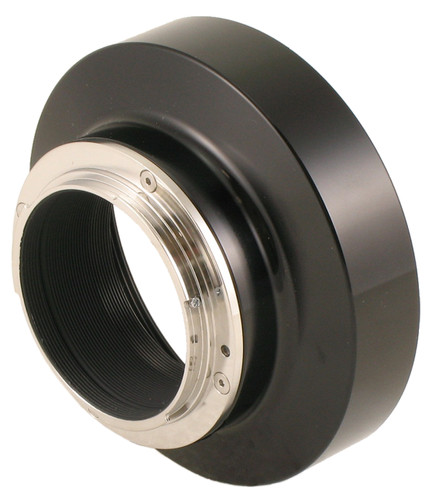

This DSLR camera adapter for Nikon cameras has an enlarged inside diameter forward of the Nikon bayonet which helps to reduce vignetting, especially when used with fast scopes (steep light-cones) and full-frame sensors. The limitation is only the camera body’s opening.
The adapter body is precision-machined aluminum and is black-anodized. The bayonet is machined stainless steel, and both the body and the bayonet are baffled and painted flat-black on the inside.
The ADATCCNIK will place the camera sensor at the perfect 80.8 mm distance from the rear flange of the recommended back-focus spacer of the field flattener or TCC. Refer to the DSLR & Mirrorless Camera System diagrams below.
Warning: Be very careful if using filters with any of the TCC Telecompressor-Correctors, as they have very limited clearance to the back optical element. DO NOT stack multiple filters when using the TCC!
Designed for:
- 110TCC and 110FF
- 13035FF-2, 13035FF-3, 13035TCC-3 and 13035TCC-2
- QUADTCC-155 and QUADTCC (all versions)
- 14035FF and 180F7FF
- Legacy field flatteners: 160FF, 175FF
- Legacy telecompressor correctors: 155TCC, 160TCC, 175TCC
Specifications
- Net spacing distance: 1.35" (34.3mm)
- Camera adapter: Nikon DSLR bayonet
- I.D. of bayonet: 1.592" (40.0mm)
- Female threads: 3.27 x 16tpi to use with the back-focus spacer specified for your field flattener or TCC.
Diagrams and Instructions
Refer to the following diagrams for additional information regarding spacing.
Current recommendations:
-
130GTX DSLR and Mirrorless Camera System Diagram
- 175 & 160 CCD Field Flattener Spacing Requirements, includes legacy adapters, consider ADANIK-Z instead
- 0.76x 155TCC, 160TCC & 175TCC Telecompressor Corrector Spacing Requirements, includes legacy adapters, consider ADANIK-Z instead
- 0.72x QUADTCC (all versions) Telecompressor Corrector Spacing Requirements, includes legacy adapters, consider ADANIK-Z instead
Legacy documents for your reference in case you own some of these components:
- Field Flatteners, TCCs & QUADTCC Imaging Train Options
- If you own items not shown in the diagrams above, please refer to the Discontinued Products section of this website and Technical Support for Legacy Products that are No Longer Available.
Custom Spacers & Adapters
If you need a spacer or adapter for a configuration that is not described above, we recommend that you contact PreciseParts. You may also review the following diagram that shows additional components you might find useful. Keep in mind that some are legacy parts: Field Flatteners, TCCs & QUADTCC Imaging Train Options
Astro-Physics 80.8mm Back-focus Spacing Distance
For more information regarding the concept for the 80.8mm back-focus spacing distance, refer to this webpage: Spacers & Extensions
